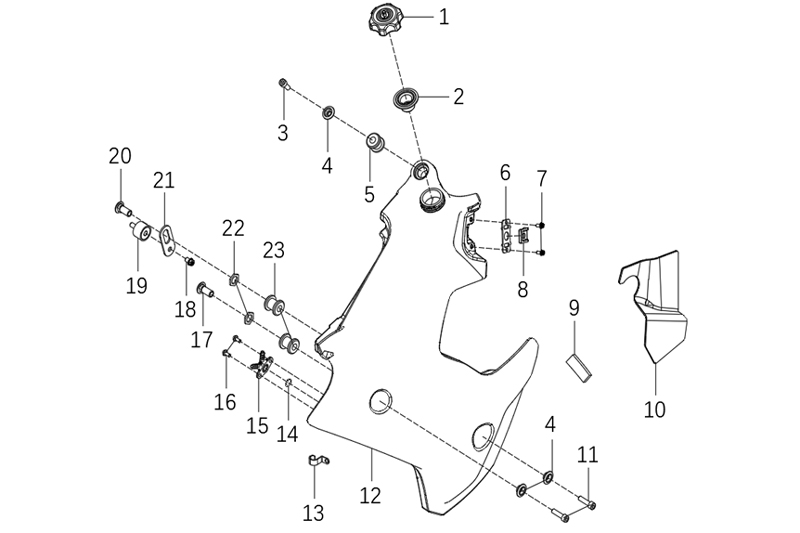

F-09 フロントタンク（右）

F-09-01 310006-T501-00001 Cover, Front fuel tank

￥0 (税込)

F-09-02 420061-T501-00000 Seal, fuel tank cover

￥0 (税込)

F-09-03 5003-08020-SC00 Internal hex column chapiter screw M8*20

￥0 (税込)

F-09-04 910013-T501-00000 Mounting bush（必要数 3個）

￥0 (税込)

F-09-05 420008-T501-00001 I-rubber ring∮29*∮19.5*25

￥0 (税込)

F-09-06 360045-T501-00000 Stand, Front guard

￥0 (税込)

F-09-07 5021-05012-DK00 Internal hex bolt M5*12（必要数 2個）

￥0 (税込)

F-09-08 5009-06093-BS00 Hasp M6*9.3, Width: 25, Length: 25

￥0 (税込)

F-09-09 900005-T501-00000 Abrasion-resistant sticker 50*20*5.5

￥0 (税込)

F-09-10 5003-08030-SC00 Internal hex column chapiter screw M8*30（必要数 2個）

￥0 (税込)

F-09-11 311300-T501-00000 Front fuel tank-Right

￥0 (税込)

F-09-12 400006-R100-000 Hook

￥0 (税込)

F-09-13 5104-012020-000 O-ring ∮12*∮2

￥0 (税込)

F-09-14 312000-T501-00001 Oil pipe connector (double connector)

￥0 (税込)

F-09-15 5023-05010-BS00 Internal hex socket countersunk head screw M5*10（必要数 2個）

￥0 (税込)

F-09-16 360047-T501-00001 Mounting nut

￥0 (税込)

F-09-17 5021-08010-DK00 Internal hex bolt M8*10

￥0 (税込)

F-09-18 5027-08020-BS00 Rubber bolt M8*20

￥0 (税込)

F-09-19 360047-T501-00000 Mounting nut

￥0 (税込)

F-09-20 360046-T501-00000 Stand

￥0 (税込)
