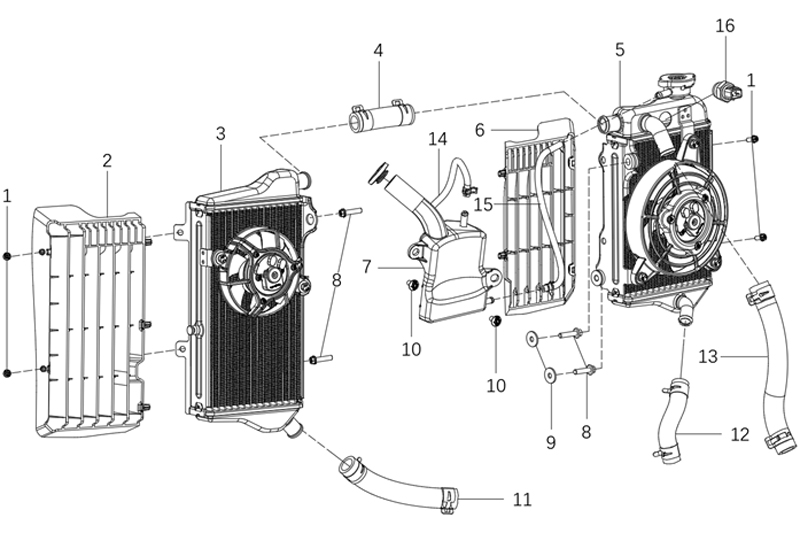

450RALLY F-27 ラジエーター

450RALLY F-27-01 5021-05012-DK00 Internal hex bolt M5*12（必要数 4個）

￥33 (税込)

450RALLY F-27-02 300302-T501-00000 Radiator grille - Left

￥517 (税込)

450RALLY F-27-03 300300-T501-00001 Radiator assy - Left (with fan)

￥19,162 (税込)

450RALLY F-27-04 420056-T501-00001 Connection tube(450Rally, ∮19*∮25, with spiral hose clamps on both ends ∮16-∮27)

￥281 (税込)

450RALLY F-27-05 300400-T501-00001 Radiator assy - Right

￥16,800 (税込)

450RALLY F-27-06 300402-T501-00000 Radiator grille - Right

￥440 (税込)

450RALLY F-27-07 300200-T501-00001 Coolant Reservoir Assy

￥1,078 (税込)

450RALLY F-27-08 5021-06025-DK00 Internal hex bolt M6*25（必要数 4個）

￥44 (税込)

450RALLY F-27-09 5018-06015-SC01 Flat washer ∮6*∮18*1.5（必要数 2個）

￥33 (税込)

450RALLY F-27-10 5025-06012-BS01 Internal hex socket step head screw M6*1*12（必要数 2個）

￥55 (税込)

450RALLY F-27-11 420020-T501-00003 Engine inlet hose( Left Radiator)

￥583 (税込)

450RALLY F-27-12 420020-T501-00002Engine inlet hose( Right Radiator)

￥484 (税込)

450RALLY F-27-13 420021-T501-00001 Engine outlet hose

￥781 (税込)

450RALLY F-27-14 420027-T501-00000 Coolant reservoir breather hose ∮7*∮11*247，with 2 clamps ∮10.5

￥121 (税込)

450RALLY F-27-15 420700-T501-00000 Coolant reservoir hose

￥99 (税込)

450RALLY F-27-16 300104-T501-00000 Temperature control switch (450rally, sub-part on radiator assembly, wireless, 93 degrees)

￥2,332 (税込)
